6  Lab 6: Max and Min

Objective

Visualization of Critical Points Using First and Second Derivatives

The objective of this lab is to enhance students’ understanding of critical points and their significance in the analysis of functions. Students will achieve this by visualizing the behavior of functions and their derivatives. Specifically, students will:

  1. Plot Functions and Their Derivatives:
    • Plot the original function \(f(x)\), its first derivative \(f'(x)\), and its second derivative \(f''(x)\) on the same graph.
    • Examine the relationships between the function and its derivatives.
  2. Identify Critical Points:
    • Determine the \(x\)-values where the first derivative \(f'(x)\) is zero or undefined, identifying critical points.
    • Understand the significance of these points in terms of the function’s behavior (e.g., local maxima, minima, points of inflection).

Absolute Maximum and Minimum of a Function in an Interval

The objective of this section is to find the absolute maximum and minimum values of a function within a given interval. Students will follow a systematic procedure to locate and evaluate critical points and endpoints to determine these extreme values.

6.1 Visualization of critical points using first and second derivatives.

Plot on the same window, \(f(x),\,f'(x),\,f''(x)\) and then create a list with the \(x\)-values of the critical points for the following functions:

  • \(\displaystyle f(x)=3x^2-4x+2\)
  1. Let’s define the function first
(%i1) define(f(x),3*x^2-4*x+2);

\[\mathtt{(\textit{%o}_{1})}\quad f\left(x\right):=3\,x^2-4\,x+2\]

  1. Roots:
(%i2) soln: solve(f(x)=0,x);

\[\mathtt{(\textit{%o}_{2})}\quad \left[ x=-\left(\frac{\sqrt{2}\,i-2}{3}\right) , x=\frac{\sqrt{2}\,i+2}{3} \right] \]

  1. Derivatives:
(%i3) fdf: diff(f(x),x,1);

\[\mathtt{(\textit{%o}_{3})}\quad 6\,x-4\]

(%i4) sdf: diff(f(x),x,2);

\[\mathtt{(\textit{%o}_{4})}\quad 6\]

  1. Plot:

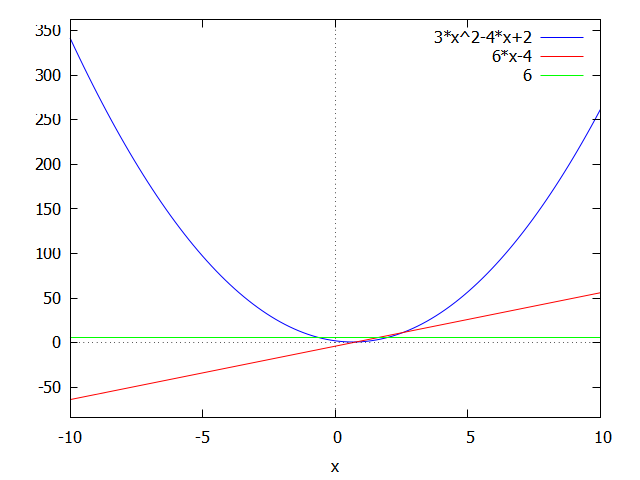

(%i5) plot2d([f(x),fdf,sdf],[x,-10,10]);

  1. Zoom:

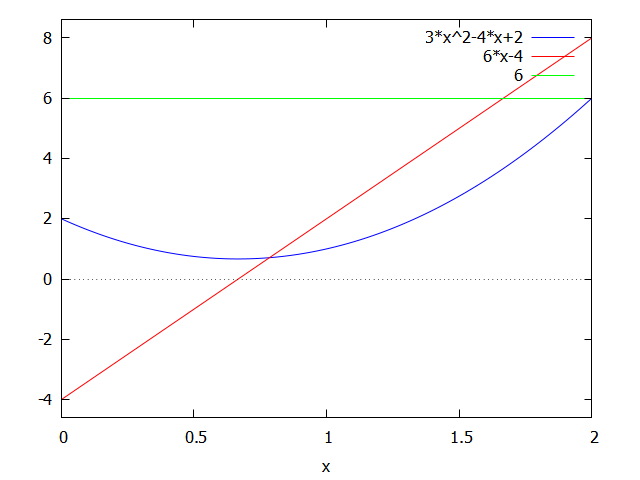

(%i6) plot2d([f(x),fdf,sdf],[x,0,2]);

  1. Critical Points:
  1. When the first derivative of the function is equal to zero.
(%i7) cp: solve(fdf=0,x);

\[\mathtt{(\textit{%o}_{7})}\quad \left[ x=\frac{2}{3} \right] \]

  1. When the derivative of the function do not exist (\(f'=\inf\)).

In this case we have a well behave polynomial function, therefore the derivative is also a well behave function, therefore you will not find critical points when \(f'=\inf\).

  • \(\displaystyle f(x)=\frac{x^3}{3}-9x\)

  • \(\displaystyle f(x)=3x^3+\frac{3x^2}{2}-2x\)

  • \(\displaystyle f(x)=x^3-4a^2x\)

  • \(\displaystyle f(t)=\frac{t}{t^2+1}\)

  • \(\displaystyle f(x)=\frac{e^x+e^{-x}}{2}\)

  • \(\displaystyle f(x)=\frac{1}{x}+\ln x\)

  • \(\displaystyle f(x)=x^2\sqrt{x+5}\)

6.2 Absolute maximum and minimum of a function in an interval.

Determine the location and value of the absolute extreme values of \(f\) on the given interval, if they exist. (Follow procedure discussed in class.)

  • \(\displaystyle f(x)=x^2-10\) on \([-2,3]\).
(%i8) define(f(x),x^2-10);

\[\mathtt{(\textit{%o}_{8})}\quad f\left(x\right):=x^2-10\]

(%i9) a: -2;

\[\mathtt{(\textit{%o}_{9})}\quad -2\]

(%i10) b: 3;

\[\mathtt{(\textit{%o}_{10})}\quad 3\]

(%i11) fdf: diff(f(x),x,1);

\[\mathtt{(\textit{%o}_{11})}\quad 2\,x\]

(%i12) sdf: diff(f(x),x,2);

\[\mathtt{(\textit{%o}_{12})}\quad 2\]

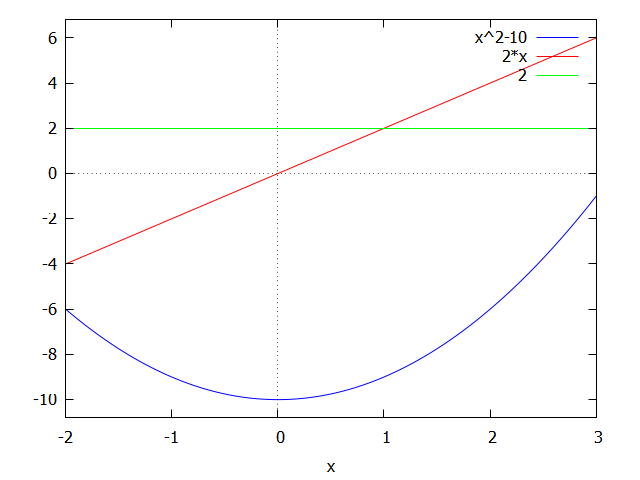

(%i13) plot2d([f(x),fdf,sdf],[x,a,b]);

6.2.1 Procedure

6.2.1.1 Find critical points

Locate the critical points \(c\) in \((a,b)\), where \(f'(c)=0\) or \(f'(c)\) does not exist.

(%i14) cpz: solve(fdf=0,x);

\[\mathtt{(\textit{%o}_{14})}\quad \left[ x=0 \right] \]

(%i15) cpu: solve(fdf=inf,x);

\[\mathtt{(\textit{%o}_{15})}\quad \left[ x=\frac{\infty }{2} \right] \]

6.2.1.2 Evaluate the function in ALL candidates.

Evaluate \(f\) at the critical points and at the end points of \([a,b]\).

(%i16) candidates: [f(a),f(rhs(cpz)),f(b)];

\[\mathtt{(\textit{%o}_{16})}\quad \left[ -6 , -10 , -1 \right] \]

6.2.1.3 Sort previous steps to fin abs max. and abs min.

Choose the largest and smallest values of \(f\) from Step 2 for the absolute maximum and minimum values, respectively.

(%i17) sort(candidates);

\[\mathtt{(\textit{%o}_{17})}\quad \left[ -10 , -6 , -1 \right] \]

Then the absolute minimum occur at \(x=0\), and the absolute maximum occur at \(x=b=3\).

  • \(\displaystyle f(x)=(x+1)^{4/3}\) on \([-9,7]\).

  • \(\displaystyle f(x)=x^3-3x^2\) on \([-1,3]\).

  • \(\displaystyle f(x)=3x^5-25x^3+60x\) on \([-2,3]\).

  • \(\displaystyle f(x)=\cos^2 x\) on \([0,\pi]\).

  • \(\displaystyle f(x)=\sin 3x\) on \([-\pi/4,\pi/3]\).

  • \(\displaystyle f(x)=(2x)^x\) on \([0.1,1]\).

  • \(\displaystyle f(x)=x^2+\cos^{-1}x\) on \([-1,1]\).
